Kubota generators
TG30 – TG32S
Prime power
30 kVA
23.3 kW
Standby power
31.4 kVA
Approx. 25 kW at 0.8 pf
Key specifications
- Type
- Diesel generator set
- Engine
- Kubota V3300-E2-BG2
- Alternator
- Leroy-Somer TAL042C
- Prime power
- 30 kVA
- Standby power
- 31.4 kVA
- Rated power
- 23.3 kW
- Frequency
- 50 Hz
- Speed
- 1500 rpm
- Voltage
- 400 / 230 V
- Phase
- Three-phase
Full datasheet — dimensions, fuel consumption, weight and options — is provided with your quote. Every set is built and tested to order.
Full technical datasheet
Engine specifications
- Make & model
- Kubota V3300-E2-BG2
- Cylinders
- 4; inline vertical
- Bore × stroke
- 98 × 110 mm
- Induction
- Naturally aspirated
- Combustion
- Indirect injection
- Cycle
- 4-stroke
- Compression ratio
- 22.6
- Cooling
- Water-cooled
- Displacement
- 3.318 L
- Oil capacity
- 13.2 L max
- Coolant capacity
- 13.2 L
- Governor
- Механічний 5% (електронний)
- Engine speed
- 1500 rpm
- Radiator airflow (m³/s)
- 1.7
- Emissions
- EPA/CARB Tier 2
- Max exhaust temp (°C)
- 500
- Max exhaust gas flow (m³/min)
- 6.63
- Max back pressure (kPa)
- 7.1
Alternator specifications
- Make & model
- Leroy-Somer TAL042C
- Frequency / poles
- 50 Hz / 4-pole
- Winding pitch
- 2/3
- Ingress protection
- IP23
- AVR
- R120
- Insulation class
- Class H
- Overspeed
- 2250 rpm
- Terminals
- 6 (12)
- Voltage regulation
- ±1%
- Excitation
- SHUNT
- Voltage THD
- < 5%
Fuel & oil consumption
| Load | Fuel (L/h) | Oil (L/h) |
|---|---|---|
| 110% | 8.0 | — |
| 100% | 7.2 | — |
| 75% | 5.4 | — |
| 50% | 3.6 | — |
| 25% | 1.8 | — |

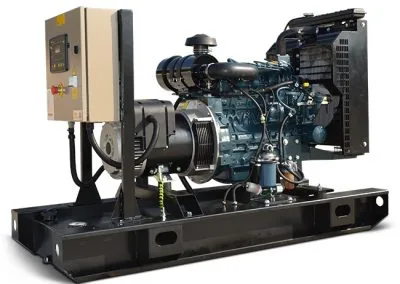

Open genset — dimensions & weight
- Length
- 1700 mm
- Width
- 610 mm
- Height
- 1160 mm
- Weight (dry)
- 495 kg
Sound-attenuated canopy
- A (mm)
- 2270
- B (mm)
- 1000
- C (mm)
- 1228
- D (mm)
- 497
- Total weight
- 850 kg
Sound pressure level (dB)
| No load | Full load | |
|---|---|---|
| 1 m | 78 | 81 |
| 3 m | 76 | 79 |
| 7 m | 74 | 77 |
Standard enclosure
Sound-attenuated canopy: 2 mm galvanised steel with fully removable panels, 50 mm fibreglass acoustic insulation, heat-cured powder coating, stainless-steel locks and cast hinges, and an integrated exhaust silencer.
Standard features
- Assembled to ISO 8528 at the Tom Generators factory
- Frame-mounted on anti-vibration supports
- Base fuel tank with return valve and level indicator
- Radiator guard with electric starter
- Spare fuel, oil and air filters
- Industrial silencer, 16 dB attenuation
- Large integrated fuel tank under the platform
